Top Electric Cable Wire Types You Need to Know?

Understanding the various types of electric cable wire is crucial for anyone involved in electrical projects. John Smith, an expert in the electrical industry, once stated, "The right cable can save time, money, and even lives." This sentiment emphasizes the importance of selecting the appropriate type of electric cable wire for your needs.

Electric cable wires come in many forms, each designed for specific applications. There are power cables, coaxial cables, and fiber optic cables, to name a few. Choosing the wrong type can lead to issues like short circuits or insufficient power supply. It's easy to overlook these differences, yet they matter significantly. Consider the scenarios where improper options were used. It often ends poorly, leading to losses and hazards.

While selecting the right electric cable wire might seem straightforward, the reality is complex. Each option has its own technical specifications. Additionally, safety standards must be a priority. Failure to adhere could result in serious consequences. Ensuring compliance with these standards requires diligence. Reflecting on past mistakes can guide better decisions in the future.

Table of Contents [Hide]

1 Introduction to Electric Cable Wire Types

2 Common Materials Used in Electric Cables and Wires

3 Key Specifications and Ratings for Electric Cables

4 Different Applications of Electric Cables in Various Industries

5 Safety Standards and Compliance for Electrical Wiring

Introduction to Electric Cable Wire Types

Electric cables are essential in modern electrical systems. Understanding wire types is crucial. Different applications require different cables. For instance, copper wires are widely used for their highly conductive properties. According to industry reports, approximately 70% of residential wiring uses copper. Yet, aluminum wires have gained traction due to their lighter weight and lower cost.

There are several wire types to consider. THHN and THWN wires are common in construction. They are versatile and suitable for both indoor and outdoor use. However, using the wrong wire type can lead to issues. Some may experience overheating or reduced performance in their electrical systems. Reports suggest that improper wire selection leads to about 12% of electrical failures.

Insulation is another critical factor. PVC and rubber are popular insulation materials. PVC is often chosen for its durability and resistance to moisture. However, it can be less flexible in extreme temperatures. Rubber, while more flexible, may not stand the test of time in all environments. Understanding these factors helps in making informed decisions.

Common Materials Used in Electric Cables and Wires

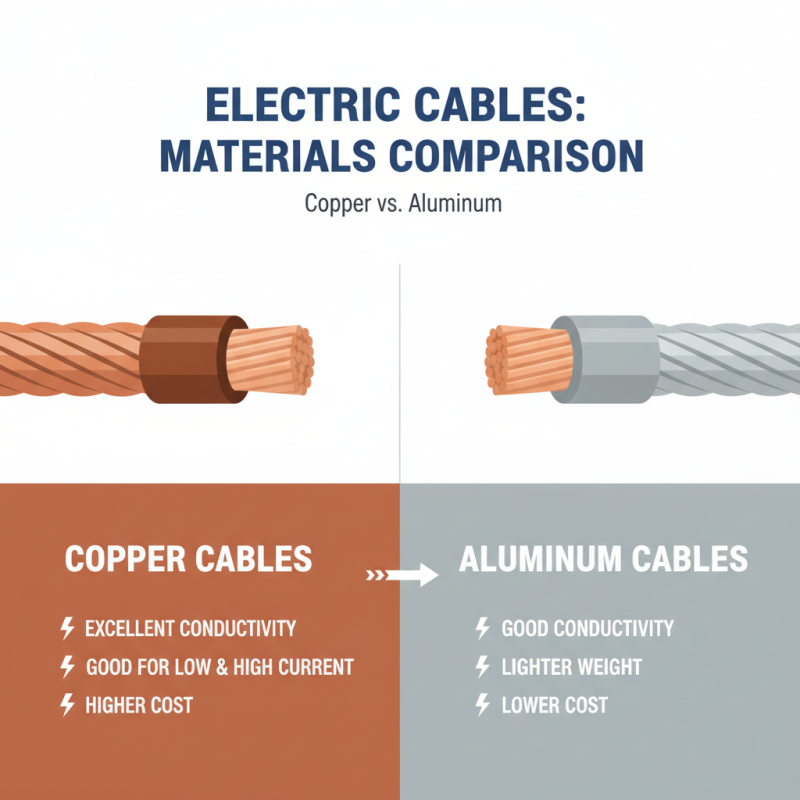

When choosing electric cables and wires, understanding common materials is essential. Copper and aluminum are two widely used materials. Copper cables are known for their excellent conductivity. They perform well in both low and high current situations. However, copper can be more expensive than aluminum.

Aluminum wires offer a lighter option but may require larger diameters to match copper's conductivity. This presents installation challenges. Beware of the oxidation issue; aluminum can corrode over time, affecting performance.

Tips: Check the application. Use copper in high-performance settings. Choose aluminum for less critical situations. Remember that insulation materials like PVC and rubber also play vital roles. They protect wires and ensure longevity. Select insulation based on environmental needs. Understand that not all cables are equal; this knowledge can save future repairs.

Key Specifications and Ratings for Electric Cables

When selecting electric cables, understanding key specifications and ratings is crucial. Voltage rating is essential. It indicates the maximum voltage an electric cable can handle. For instance, a cable rated for 600 volts is ideal for residential applications. Cables used in industrial settings typically require higher voltage ratings, such as 1,000 volts.

Current rating is another important aspect. It determines how much current the cable can carry without overheating. According to industry standards, a typical 14-gauge copper wire can handle 15 amps. Always check the wire gauge to ensure it meets the expected load demands.

Tip: Use wires with proper insulation for specific environments. For example, cables used in wet locations must have moisture-resistant insulation. This prevents failure and ensures safety.

Temperature rating is also relevant. Each cable has a maximum temperature it can withstand, often ranging from 60°C to 90°C. Exceeding this can lead to deterioration. Keep in mind that cables located in tight spaces may generate more heat than usual.

Tip: Consider ambient temperatures when selecting cables. If installing in a hot area, choose cables with higher temperature ratings. This will prevent early degradation and enhance performance.

Understanding these ratings can prevent costly mistakes. It’s vital to choose the correct cable to match specific needs. Otherwise, you may face issues like overheating or system failures. Always double-check requirements before making a purchase.

Different Applications of Electric Cables in Various Industries

Electric cables play a crucial role in various industries. They transport electricity, data, and telecommunication signals. Understanding their applications can optimize operations. For instance, the construction industry relies heavily on electric cables. According to a recent report, this sector accounts for over 40% of global cable consumption. These cables ensure safety and efficiency in building projects.

In manufacturing, electric cables are vital for equipment operation. Many factories depend on power cables for machinery. Disturbances can lead to downtime, causing significant losses. In 2022, reports indicated that unplanned downtimes due to cable failures cost industries millions monthly. Choosing the right type of cable for machinery is essential. It prevents production hiccups that can reflect poorly on the company.

Telecommunication sectors utilize specific cables for data transmission. Copper and fiber optic cables dominate this field. They ensure high-speed internet and reliable connections. Recent studies show that fiber optic cables are becoming increasingly popular, with a projected growth rate of 12% by 2025. However, not all regions have easy access to these technologies, causing disparities in service quality. This gap needs addressing for a more connected world.

Safety Standards and Compliance for Electrical Wiring

Electrical wiring safety standards are crucial. They ensure the protection of life and property. According to the National Electrical Code (NEC), compliance is mandatory in the U.S. Missteps in adherence can lead to serious hazards.

Many fires and electrical shock incidences stem from non-compliant wiring. The U.S. Fire Administration estimates that electrical failures or malfunctions cause around 45,000 residential fires annually. This illustrates the need for strict safety measures. Updates to safety codes are frequent, ensuring they reflect the latest in electrical technology.

Proper insulation materials also play a vital role. Materials like PVC or rubber are preferred for their fire-resistant properties. However, proper installation is sometimes overlooked. Poor connections can compromise these materials, increasing risk. Regular inspections are a simple yet often neglected preventive measure. They can detect issues before they escalate into dangerous situations.
